Neo4j TLS/SSL Encryption

Prerequisite: To configure TLS/SSL in Neo4j, KubeDB uses cert-manager to issue certificates. Make sure cert-manager is installed in your cluster. You can install it by following the official guide here.

To issue certificates, the following cert-manager CRDs are used:

• Issuer/ClusterIssuer: Represents the certificate authority used to sign certificate requests.
• Certificate: Describes the desired X.509 certificate that cert-manager keeps renewed.

Neo4j CRD Specification:

KubeDB uses spec.tls in the Neo4j CR to enable transport encryption.

• spec.tls.issuerRef
• protocol-specific TLS settings under spec.tls (for example bolt, https, and cluster channels)

Read field details in Neo4j concept.

How TLS/SSL is configured in Neo4j

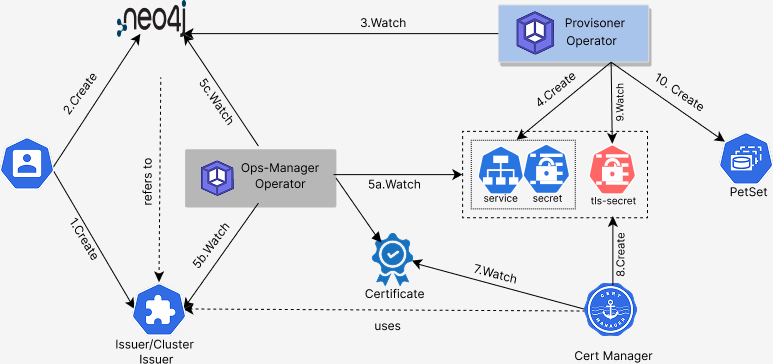

The following figure shows the operational flow used by KubeDB to configure TLS/SSL in Neo4j.

Deploying Neo4j with TLS/SSL configuration consists of the following steps:

1. User creates an Issuer/ClusterIssuer.
2. User creates a Neo4j CR with spec.tls.
3. KubeDB operator watches the Neo4j CR and creates required resources.
4. KubeDB Ops Manager detects required resources and creates Certificate resources.
5. cert-manager watches Certificate resources and issues certificate Secrets.
6. KubeDB reconciles Neo4j pods with issued TLS certificates mounted.
7. Neo4j cluster becomes ready with encrypted transport enabled for configured protocols.

In the next document, we show a step-by-step guide for configuring a Neo4j database with TLS/SSL.
